Description:

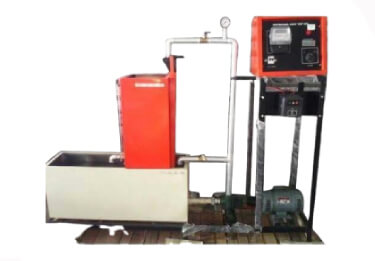

The test rig consists of a single stage centrifugal pump set, suitable for determining its characteristics such as the efficiency
and input power at various head and discharge. An energy meter and stopwatch is provided to measure the input power to the pump set. A collecting tank is provided for measuring the actual flow rate.
Specifications:
• Capacity – 1 HP, with DC motor variable speed type 4 Amp.
• Sump tank - 1000 x 700 x 300m height
• Measuring tank - 600 x 400 x 250mm height
• Energy meter
• Pressure Gauge
• Vacuum Gauge
• On / Off Switch
Range of Experiments:
To find out efficiency of a Centrifugal pump Test Rig at various speeds. Measurement & Controls:
Energy meter
Pressure and vacuum gauges
Stop clock
Adequate turn pipes and control arrangement
Equipment - with rust proof powder coating
Range of Experiments:
To find out efficiency of a Centrifugal pump Test Rig at various speeds.
Space Required:
Floor area-2m x 2m
Supply-230v.15A, AC
A technical manual accompanies with unit.
