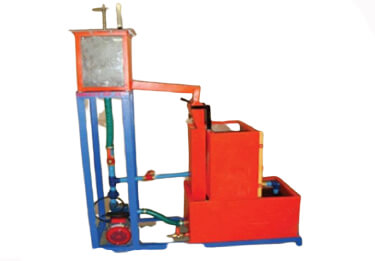

Specifications:
• 30 cm x 30 cm dia. Transparent cylinder mounted on a stand.
• Differential lever mechanism with adjustable load screw mechanism & dead weight to measure the force. Sump Tank 1000 x 300 x 400 mm.
• Measuring tank - 300 mm x 300mm x 500 mm with drain valve.
• Two nozzles with inside section : Straight taper ,Curved taper.
• Any Two vanes of - (with requirement give 5 all with extra cost).
• Semicircular vane with angle of deflection 180°.
• Curved vane with angle of deflection 135°.
• Horizontal flat vane angle of deflection 90°.
• 60° inclined flat vane.
• 30° inclined flat vane.
Range of Experiments:
• To study the impact of jet on various types of vanes & to measure impact forces.
• To find coefficient of impact.
Supplied complete with universal cutter angle gage
Easily verifies the angles of the top point of all kind of drills
and countersinks.
The angles include : 60°,82°,90°,118°,120°,135°,150°,160°.
Accuracy: ±0.5°.
Made of Stainless steel, polished.
Thickness: 1.0 MM.
SIZE: 80X80 MM.
Packed in perfect pouch.
