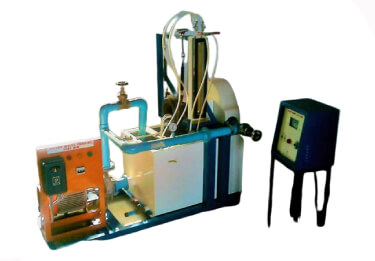

Specifications:
• Sump Tank SS : 1200mm x 600mm x 600mm.
• Specific Speed : Approx. 19 RPM.
• Net Head : 45m Approx.
• Discharge : Approx. 820 LPH approx.
• Normal Speed : 750 RPM.
• Power : 1kw ( 5HP motor).
• Runner Diameter: 250 mm.
• Number Of Buckets : 16.
• Brake Drum Diameter : 200 mm.
• Centrifugal Pump set suitable for supply of water of size coupled to 5 HP induction motor 3 phase 400 V. A. C. supply.
• Flowing Measuring Unit : A 2' inch venturi meter OR Orifice meter OR Manometer with two pressure gauges on a Panel board to measure the
Differences of pressure.
• Starter switch, piping, foot valve, gate valve.
• Spring Balance 10Kg- 1 No., 25Kg-1 No.
Range of Experiments:
• Demonstrating the operating characteristics i.e. power efficiency and torque of a Pelton Wheel at various speeds.
• Determining the performance characteristics and effect of discharge and velocity of impinging water on Turbine operation.
